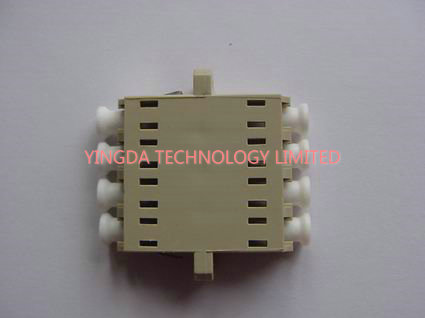

FTTH Rack Panel LC Quad Adapter , LC MM Optical Fiber Adapter Customized

Name: FTTH Rack Panel LC Quad Adapter LC MM Optical Fiber Adapter Customized
Brand: YINGDA
Price: 0.04 USD

Quality FTTH Rack Panel LC Quad Adapter , LC MM Optical Fiber Adapter Customized for sale

Brand Name : YINGDA

Model Number : AD-LC-MM-Q4

Certification : ISO,SGS

Place of Origin : china

MOQ : 100 pcs

Price : 0.04USD-2.15USD

Payment Terms : T/T or western Union

Supply Ability : 100000pcs/month

Delivery Time : 3working days

Packaging Details : 20 pcs / blister box

Fiber count : 4 Core, quad fibers

connector material : plastic

dustcap color : beige / grey

sleeve material : ceramic

fiber type : mm / multimode

polish mode : PC

sky window : can be customized

product name : mpo to mpo cable,mpo to lc cable, mtp optical connector,mtp cassette

Contact Now

FTTH Rack Adapter Panel LC Quad Adapter, LC MM Optical Fiber Adapter

This coupler provides a solution for extending a current run of fiber optic cabling. This coupler

is constructed from highgrade plastic and has been designed and engineered for durability

and a long life.

Adapter structure

Advantage:

Telcordia GR-326, IEC, TIA/EIA Standard compliant.
100% Optical performance inspection.
Low Insertion Loss.
RoHS Compliance.
Customized design and production.

Material List:

Sleeve: Ceramic or PB
Housing: PC , Flammability UL94 V-0
Dust cap: PVC, Flammability UL94 V-0
Clip:s tainless steel

Optical characteristic

Optical Performance

Premium Grade

Standard Grade

Insertion Loss

≤0.1dB

≤0.2dB

Durability

1000 times

Environment and Mechanical Properties

Item	Test condition	Conformance	Test result
Vibration	10-55Hz, 1.5mm, 60min	IEC61300-2-1	≤0.2dB
Mating Durability	1000 Mating, clean every 25 mating.	IEC61300-2-2	≤0.2dB
Impact	1.5m, 8 drops	IEC61300-2-6	≤0.2dB
Strength of Coupling Mechanism	40N, 10Min, L=22-28cm	IEC61300-2-12	≤0.2dB
Temperature Cycling	40ºC to +75ºC, 40 cycles	IEC61300-2-22	≤0.2dB
Temperature humidty cycling	40ºC, 95%, 96Hr	IEC61300-2-21	≤0.2dB
Operating Temperature	-40ºC to +85ºC		≤0.2dB
Storage Temperature	-40ºC to +85ºC		≤0.2dB

This adapter have two types; A and B

Type A: have sky window like below

FTTH Rack Panel LC Quad Adapter , LC MM Optical Fiber Adapter Customized

Type B: don't have sky window, the surface is smooth, see below:
